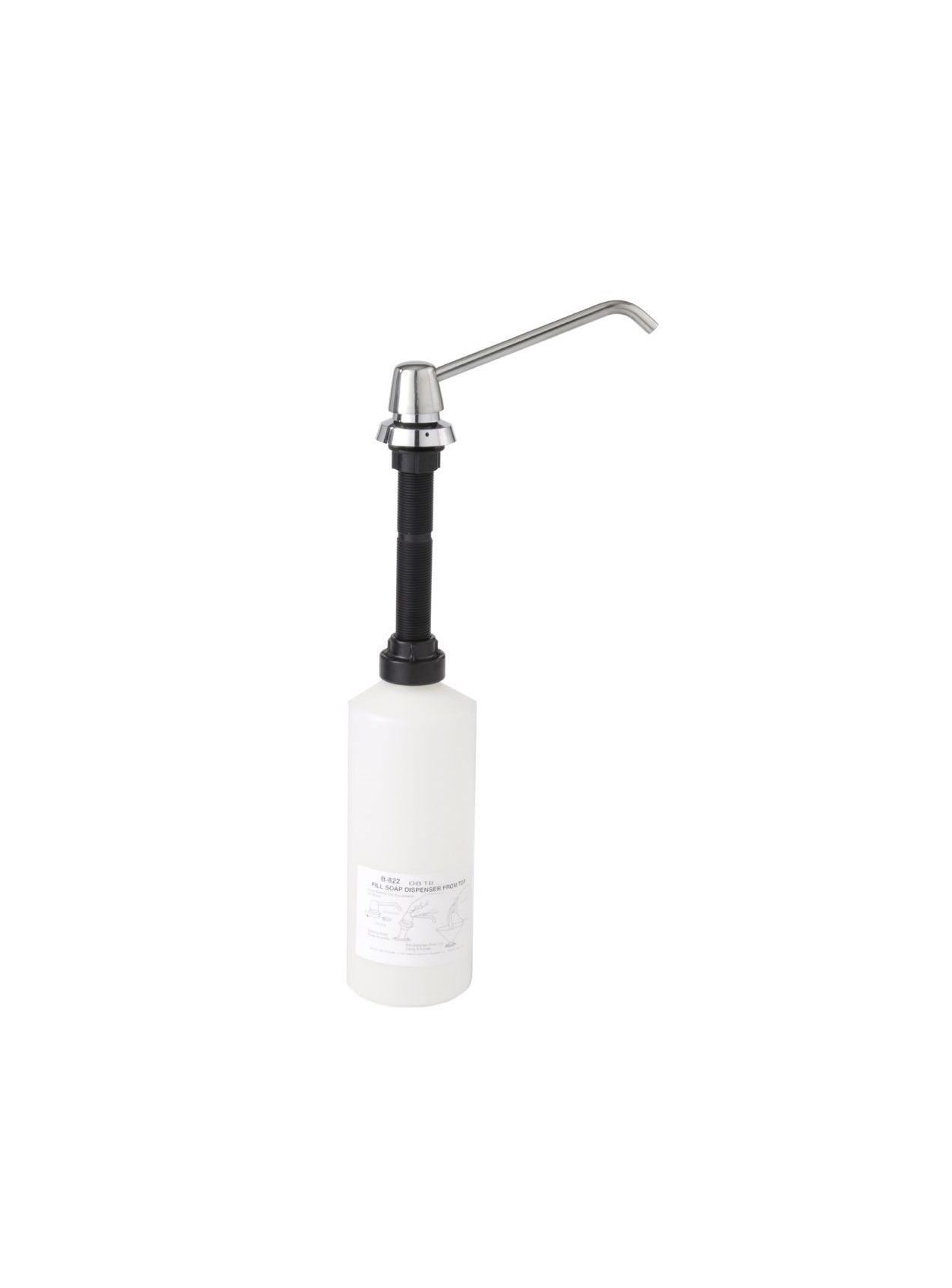

B-8226 Bobrick 1000ml Sink-Mounted Soap Dispenser with 150mm Spout

This Bobrick counter or sink-mounted soap dispenser pours 0.85ml of liquid soap when the user presses the piston down. It has high resistance to vandalism, due to its top locking mechanism and the fact that the 150mm spout can turn 360º with no harm for the system. To refill the translucent polyethylene container, one can remove the top cover with a special key (provided) or insert the soap directly into the 1 litre bottle, from the bottom. If you prefer the same product with a shorter spout, please, check this webpage.

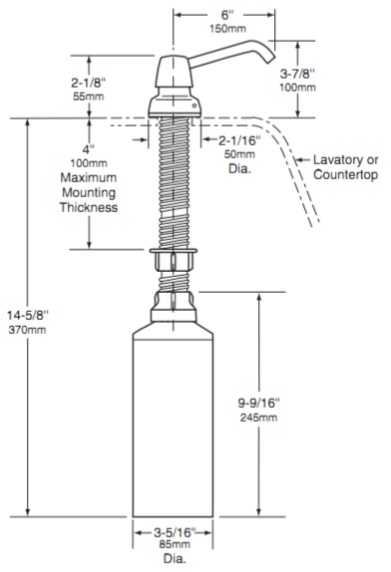

These are the main installment requirements:

• 25mm hole in the washbasin or adjacent countertop.
• Up to 100mm mounting thickness for the shank.
• 85mm clearance for the reservoir.

Note that the soap pump assembly should be flushed with warm water every six months.

The piston, spout and top cover are made of 304 stainless steel with a bright polished surface, the same finish as the escutcheon. We encourage you to follow the maintenance and cleaning guidelines you will find below. Do not wash these materials with abrasive solutions.

This item can dispense vegetable-oil soaps, lotion soaps or synthetic detergents. Nonetheless, the metal component are not designed to support corrosive solutions such as EA-rated antibacterial soaps (active ingredient PCMX or Triclosan), iodine-based surgical soaps or alcohol-based antiseptic substances.

• 1L capacity | 0.85ml per shot dispensed | 1176 shots per refill
• Dimensions: 75 (H) x Ø 50 x 175 (D) mm
• Spout: 150mm
• Hole diameter in lavatory or counter: Ø 25mm
• Mounting thickness for the shank: max. 100mm
• Clearance for the container: 85mm
• Guarantee: 3 years
• Materials: polished 304 stainless steel (piston, spout, top cover, valve spring), impact-resistant polyester (cover spacer), chrome-plated ABS (escutcheon), high-impact-resistant plastic (body and shank), ABS (valve cylinder), translucent, shatter-resistant polyethylene (container)
• Recycled metal: 50%-70%
• Special key is furnished
