Specification

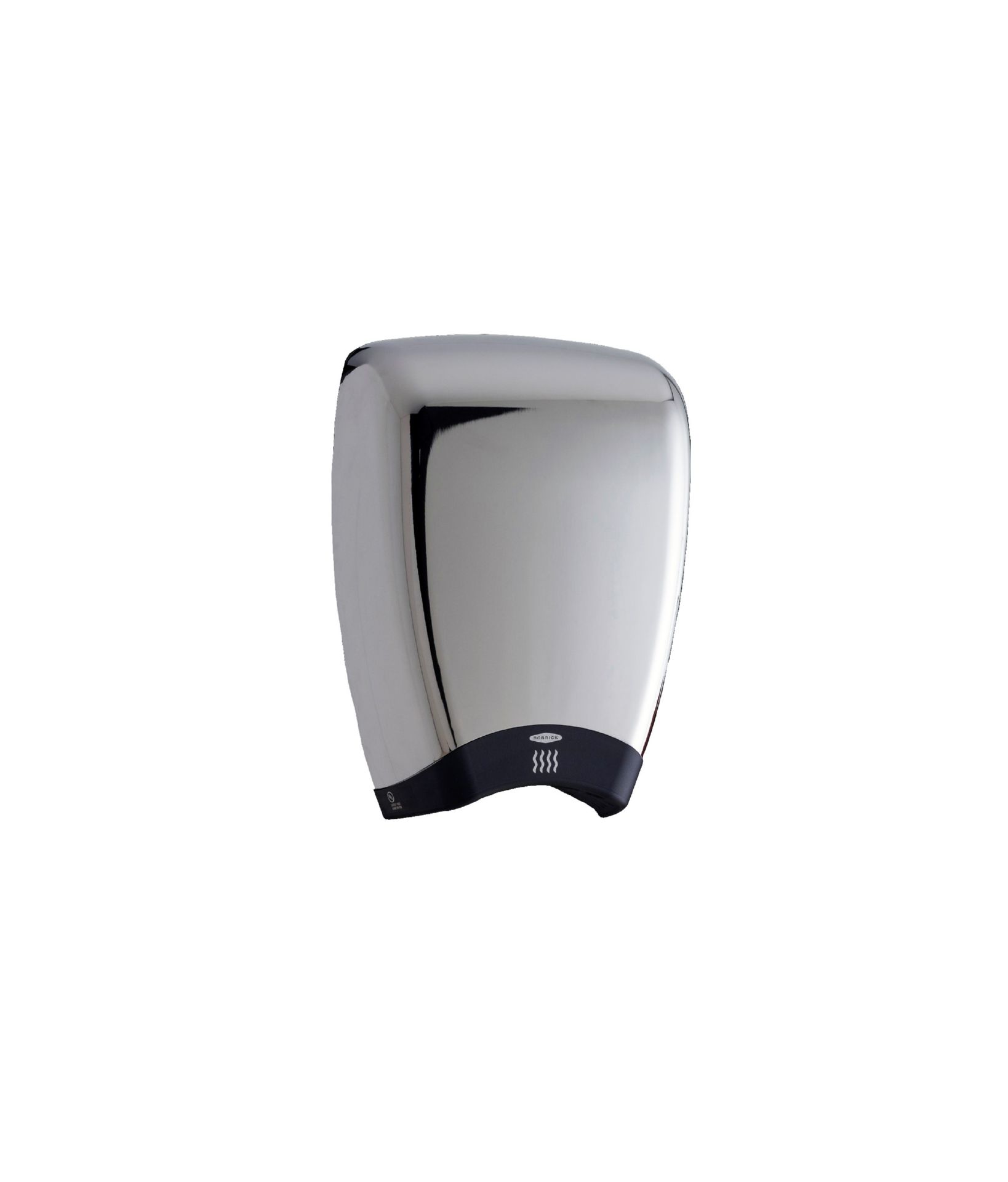

Aluminium die-casting with bright-polished chromium cover. Cover projects no more than 4” (100mm) from wall. Thermally protected, Universal, 1/7 hp, 8000 rpm motor, on resilient mounting. Shielded ball bearings at both ends. Double-inlet forward curved impeller, providing air volume of 120 m³/hr (71cfm); air velocity of 35m/s (7000 lfm).
Finish
Bright-polished Chrome
Features
10-year limited warranty. Uniquely designed to have a sound pressure level of 70dB(A) measured at 1 metre from source. One-piece vandal resistant UL 94-5V black plastic grille. cULus Listed, and/or CE marked. Unit complies with EU Directive “Restriction of Hazardous Substance” (ROHS) requirements for non-use of certain hazardous substances in the production of electronic products.
Dimensions
259 (W) x 351 (H) x 100 mm (D)
